前言

linux 内核源代码变动怎么这么大，handle_bridge 函数居然没有了，本来接着准备以 3.9.1 分析的，但发现和后面的又变了，还是以 4.15.1 现在电脑上用的版本分析吧。

linux kernel：4.15.1

best of best [link](https://upload.wikimedia.org/wikipedia/commons/3/37/Netfilter-packet-flow.svg)

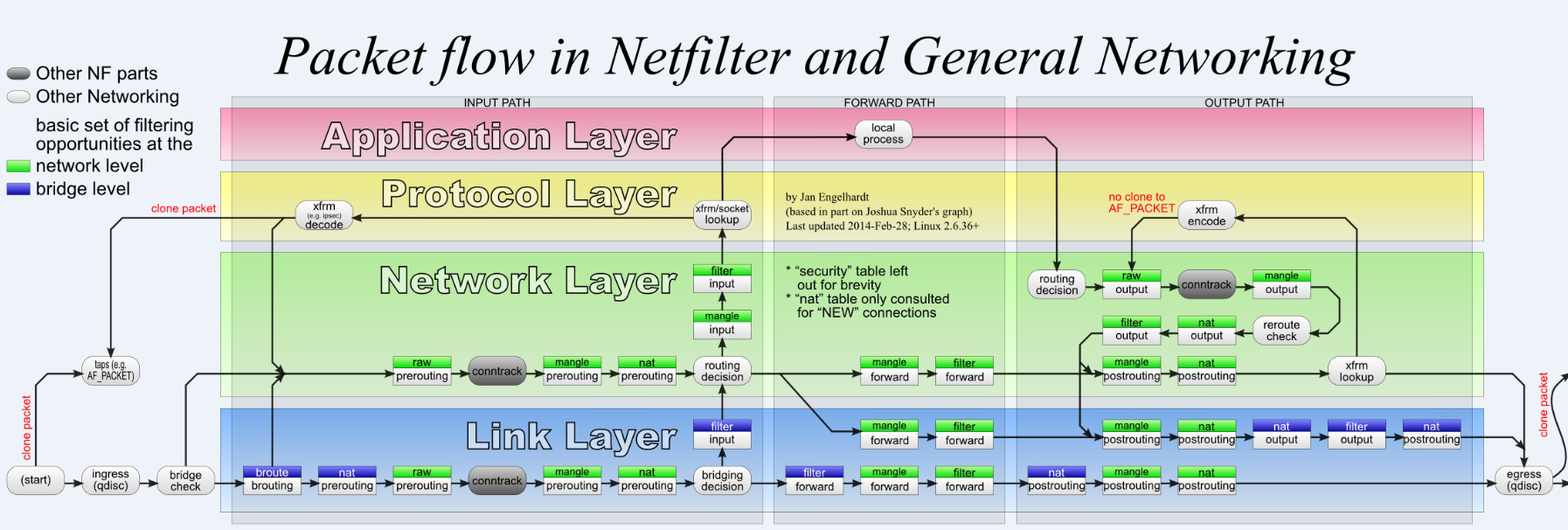

先看三张图片

IMG skb桥转发蓝图

IMG linux TCP/IP L2层数据包接收流程

IMG 浅析ebtables的概念和一些基本应用

tips: linux 内核版本不一样，流程函数会发生细微改变。

1. br_handle_frame()

作用：

  1. 对于需要转发的报文，调用 NF_BR_PRE_ROUTING 处钩子函数，结束后，进入 br_handle_frame_finish() 函数；

  2. 对于 STP 报文，调用 NF_BR_LOCAL_IN 处钩子函数，结束后，进入 br_handle_local_finish() 函数，在 br_handle_local_finish() 函数中会调用 br_pass_frame_up() 函数。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
//linux/net/bridge/br_input.c
/*
 * Return NULL if skb is handled
 * note: already called with rcu_read_lock
 */
rx_handler_result_t br_handle_frame(struct sk_buff **pskb)
{
	struct net_bridge_port *p;
	struct sk_buff *skb = *pskb;
	const unsigned char *dest = eth_hdr(skb)->h_dest;
	br_should_route_hook_t *rhook;

	/*如果是环回地址，直接返回RX_HANDLER_PASS*/
	if (unlikely(skb->pkt_type == PACKET_LOOPBACK))
		return RX_HANDLER_PASS;

	/*判断源MAC地址是否是有效的地址，不是直接丢弃，源MAC地址不能是多播地址和全0地址*/
	if (!is_valid_ether_addr(eth_hdr(skb)->h_source))
		goto drop;
	/*判断是否是共享数据包，若是则clone该数据包；若clone时分配内存出错，返回NULL*/
	skb = skb_share_check(skb, GFP_ATOMIC);
	if (!skb)
		return RX_HANDLER_CONSUMED;

	/*获取dev对应的网桥端口*/
	p = br_port_get_rcu(skb->dev);
	if (p->flags & BR_VLAN_TUNNEL) {
		if (br_handle_ingress_vlan_tunnel(skb, p,
						  nbp_vlan_group_rcu(p)))
			goto drop;
	}

	/*特殊MAC地址处理*/
	//如果目的mac地址是本地链路地址link local reserved addr (01:80:c2:00:00:0X) STP报文
	if (unlikely(is_link_local_ether_addr(dest))) {
		u16 fwd_mask = p->br->group_fwd_mask_required;

		/*
		 * See IEEE 802.1D Table 7-10 Reserved addresses
		 *
		 * Assignment		 		Value
		 * Bridge Group Address		01-80-C2-00-00-00
		 * (MAC Control) 802.3		01-80-C2-00-00-01
		 * (Link Aggregation) 802.3	01-80-C2-00-00-02
		 * 802.1X PAE address		01-80-C2-00-00-03
		 *
		 * 802.1AB LLDP 		01-80-C2-00-00-0E
		 *
		 * Others reserved for future standardization
		 */
		fwd_mask |= p->group_fwd_mask;
		switch (dest[5]) {
		case 0x00:	/* Bridge Group Address */
			/* If STP is turned off,
			   then must forward to keep loop detection */
			if (p->br->stp_enabled == BR_NO_STP ||
			    fwd_mask & (1u << dest[5]))
				goto forward;
			*pskb = skb;
			__br_handle_local_finish(skb);
			return RX_HANDLER_PASS;

		case 0x01:	/* IEEE MAC (Pause) */
			goto drop;

		case 0x0E:	/* 802.1AB LLDP */
			fwd_mask |= p->br->group_fwd_mask;
			if (fwd_mask & (1u << dest[5]))
				goto forward;
			*pskb = skb;
			__br_handle_local_finish(skb);
			return RX_HANDLER_PASS;

		default:
			/* Allow selective forwarding for most other protocols */
			fwd_mask |= p->br->group_fwd_mask;
			if (fwd_mask & (1u << dest[5]))
				goto forward;
		}

		/* Deliver packet to local host only */
		/*调用NF_BR_LOCAL_IN处钩子函数，结束后，进入br_handle_local_finish函数*/
		NF_HOOK(NFPROTO_BRIDGE, NF_BR_LOCAL_IN, dev_net(skb->dev),
			NULL, skb, skb->dev, NULL, br_handle_local_finish);
		return RX_HANDLER_CONSUMED;
	}

forward:
	switch (p->state) {
	//网桥端口处于转发状态
	case BR_STATE_FORWARDING:
		rhook = rcu_dereference(br_should_route_hook);
		if (rhook) {
			if ((*rhook)(skb)) {
				*pskb = skb;
				return RX_HANDLER_PASS;
			}
			dest = eth_hdr(skb)->h_dest;
		}
		/* fall through */
	/*网桥端口处于学习状态，处于转发状态也会执行下面的代码，因为上面的case没有break。*/
	case BR_STATE_LEARNING:
	/*数据包目的MAC为网桥的Mac，发往本地的数据包*/
		if (ether_addr_equal(p->br->dev->dev_addr, dest))
			skb->pkt_type = PACKET_HOST;
		/*调用NF_BR_PRE_ROUTING处钩子函数，结束后进入br_handle_frame_finish函数*/
		NF_HOOK(NFPROTO_BRIDGE, NF_BR_PRE_ROUTING,
			dev_net(skb->dev), NULL, skb, skb->dev, NULL,
			br_handle_frame_finish);
		break;
	default:
drop:
		kfree_skb(skb);
	}
	return RX_HANDLER_CONSUMED;
}

相关函数

rx_handler_result_t 枚举类型

1
2
3
4
5
6
7
enum rx_handler_result {
	RX_HANDLER_CONSUMED,
	RX_HANDLER_ANOTHER,
	RX_HANDLER_EXACT,
	RX_HANDLER_PASS,
};
typedef enum rx_handler_result rx_handler_result_t;

is_valid_ether_addr()

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18

/**
 * is_valid_ether_addr - Determine if the given Ethernet address is valid
 * @addr: Pointer to a six-byte array containing the Ethernet address
 *
 * Check that the Ethernet address (MAC) is not 00:00:00:00:00:00, is not
 * a multicast address, and is not FF:FF:FF:FF:FF:FF.
 *
 * Return true if the address is valid.
 *
 * Please note: addr must be aligned to u16.
 */
static inline bool is_valid_ether_addr(const u8 *addr)
{
	/* FF:FF:FF:FF:FF:FF is a multicast address so we don't need to
	 * explicitly check for it here. */
	return !is_multicast_ether_addr(addr) && !is_zero_ether_addr(addr);
}

br_handle_local_finish()

br_handle_local_finish() 函数中调用 br_pass_fame_up() 函数。

1
2
3
4
5
6
7
8
9
10
11
12

/* note: already called with rcu_read_lock */
static int br_handle_local_finish(struct net *net, struct sock *sk, struct sk_buff *skb)
{
	struct net_bridge_port *p = br_port_get_rcu(skb->dev);

	__br_handle_local_finish(skb);

	BR_INPUT_SKB_CB(skb)->brdev = p->br->dev;
	br_pass_frame_up(skb);
	return 0;
}

2. br_handle_frame_finish()

作用：

网桥设备是否处于混杂模式，如果是，则会发一份到本地进行处理

如果是广播包，则会进行广播洪泛，并会发一份到本地处理

如果是组播包，则根据组播表进行组播转发，并发一份数数包到本地处理

如果是单播包，发往本地的单播包则送到本地处理，在 fdb 表中可以找到转发表项的单播包则进行转发，未知单播包在广播域内进行洪泛

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
//linux/net/bridge/br_input.c
/* note: already called with rcu_read_lock */
int br_handle_frame_finish(struct net *net, struct sock *sk, struct sk_buff *skb)
{
	struct net_bridge_port *p = br_port_get_rcu(skb->dev);
	enum br_pkt_type pkt_type = BR_PKT_UNICAST;
	struct net_bridge_fdb_entry *dst = NULL;
	struct net_bridge_mdb_entry *mdst;
	bool local_rcv, mcast_hit = false;
	const unsigned char *dest;
	struct net_bridge *br;
	u16 vid = 0;

	/*如果网桥端口不存在或者网桥端口状态为BR_STATE_DISABLED，则丢弃*/
	if (!p || p->state == BR_STATE_DISABLED)
		goto drop;
	/*判断是否允许进入桥内，如果没有开启VLAN则所有数据包都可以进入，
	如果开启了VLAN,则根据VLAN相应的规则，从桥上进行数据包转发。*/
	if (!br_allowed_ingress(p->br, nbp_vlan_group_rcu(p), skb, &vid))
		goto out;

	nbp_switchdev_frame_mark(p, skb);

	/* insert into forwarding database after filtering to avoid spoofing */
	br = p->br;
	/*如果网桥端口标志有BR_LEARNING,则更新fdb表。
    一般新建网桥端口p->flags=BR_LEARNING| BR_FLOOD | BR_MCAST_FLOOD | BR_BCAST_FLOOD*/
	if (p->flags & BR_LEARNING)
		br_fdb_update(br, p, eth_hdr(skb)->h_source, vid, false);

	//发往本地数据包标记，!!的作用是转换为bool值
	local_rcv = !!(br->dev->flags & IFF_PROMISC);
	dest = eth_hdr(skb)->h_dest;
	/*目的地址为多播地址*/
	if (is_multicast_ether_addr(dest)) {
		/* by definition the broadcast is also a multicast address */
		/*如果目的地址是广播地址，将数据包也发往本地一份*/
		if (is_broadcast_ether_addr(dest)) {
			pkt_type = BR_PKT_BROADCAST;
			local_rcv = true;
		} else {
			pkt_type = BR_PKT_MULTICAST;
			//igmp snooping留给网桥子系统的外部接口函数，
			//当网桥接收了igmp数据包后就会调用该函数进行后续处理
			if (br_multicast_rcv(br, p, skb, vid))
				goto drop;
		}
	}
	//如果网桥端口状态此时还是BR_STATE_LEARNING,则丢弃。
	if (p->state == BR_STATE_LEARNING)
		goto drop;
	//将网桥所属的net_device放入skb的私有数据中（struct br_input_skb_cb）
	BR_INPUT_SKB_CB(skb)->brdev = br->dev;

	if (IS_ENABLED(CONFIG_INET) &&
	    (skb->protocol == htons(ETH_P_ARP) ||
	     skb->protocol == htons(ETH_P_RARP))) {
		br_do_proxy_suppress_arp(skb, br, vid, p);
	} else if (IS_ENABLED(CONFIG_IPV6) &&
		   skb->protocol == htons(ETH_P_IPV6) &&
		   br->neigh_suppress_enabled &&
		   pskb_may_pull(skb, sizeof(struct ipv6hdr) +
				 sizeof(struct nd_msg)) &&
		   ipv6_hdr(skb)->nexthdr == IPPROTO_ICMPV6) {
			struct nd_msg *msg, _msg;

			msg = br_is_nd_neigh_msg(skb, &_msg);
			if (msg)
				br_do_suppress_nd(skb, br, vid, p, msg);
	}

	switch (pkt_type) {
	//组播包
	case BR_PKT_MULTICAST:
		//获取组播转发项，设置local_rcv为true，组播包也要发往本地一份。
		mdst = br_mdb_get(br, skb, vid);
		if ((mdst || BR_INPUT_SKB_CB_MROUTERS_ONLY(skb)) &&
		    br_multicast_querier_exists(br, eth_hdr(skb))) {
			if ((mdst && mdst->host_joined) ||
			    br_multicast_is_router(br)) {
				local_rcv = true;
				br->dev->stats.multicast++;
			}
			mcast_hit = true;
		} else {
			local_rcv = true;
			br->dev->stats.multicast++;
		}
		break;
	//单播包
	case BR_PKT_UNICAST:
		//根据目的MAC地址查找fdb表，看是否有对应的表项
		dst = br_fdb_find_rcu(br, dest, vid);
	default:
		break;
	}

	//如果找到目的MAC对应的表项
	if (dst) {
		unsigned long now = jiffies;
		//送入上层处理
		if (dst->is_local)
			return br_pass_frame_up(skb);

		if (now != dst->used)
			dst->used = now;
		//根据fdb转发表项进行转发，若这里local_rcv 为1,（即端口处于混杂模式IFF_PROMISC），则会克隆一份再转发
		//传入的第一个参数dst->dst 即为要转发的目的端口
		br_forward(dst->dst, skb, local_rcv, false);
	} else {
		//进行广播或者组播洪泛
		if (!mcast_hit)
			br_flood(br, skb, pkt_type, local_rcv, false);
		else
			br_multicast_flood(mdst, skb, local_rcv, false);
	}
	//local_rcv标记为1，送入上层处理。
	if (local_rcv)
		return br_pass_frame_up(skb);

out:
	return 0;
drop:
	kfree_skb(skb);
	goto out;
}

3.br_pass_frame_up

数据包的目的 MAC 是本地的单播报文，广播，组播和网桥处于混杂模式时，报文都会通过 br_pass_frame_up 函数交由上层处理。

作用：

调用 NF_BR_LOCAL_IN 处钩子函数，最后调用 br_netif_receive_skb 函数，绕一圈后，交友上层处理。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
//linux/net/bridge/br_input.c
static int br_pass_frame_up(struct sk_buff *skb)
{
	struct net_device *indev, *brdev = BR_INPUT_SKB_CB(skb)->brdev;
	struct net_bridge *br = netdev_priv(brdev);
	struct net_bridge_vlan_group *vg;
	struct pcpu_sw_netstats *brstats = this_cpu_ptr(br->stats);

	//统计网桥设备上的收包流量数据
	u64_stats_update_begin(&brstats->syncp);
	brstats->rx_packets++;
	brstats->rx_bytes += skb->len;
	u64_stats_update_end(&brstats->syncp);

	//获取网桥设备上的VLAN组
	vg = br_vlan_group_rcu(br);
	/* Bridge is just like any other port.  Make sure the
	 * packet is allowed except in promisc modue when someone
	 * may be running packet capture.
	 */
	if (!(brdev->flags & IFF_PROMISC) &&
	    !br_allowed_egress(vg, skb)) {
		kfree_skb(skb);
		return NET_RX_DROP;
	}

	//记录数据包的收包网络设备
	indev = skb->dev;
	//将数据包的收包设备改为网桥设备
	//当再次进入__netif_receive_skb_core时就不会再次进入桥处理了，因为网桥上没有注册rx_handler 函数
	skb->dev = brdev;
	//配置数据包vlan相关信息
	skb = br_handle_vlan(br, NULL, vg, skb);
	if (!skb)
		return NET_RX_DROP;
	/* update the multicast stats if the packet is IGMP/MLD */
	//如果数据包是组播，更新组播数据包的统计信息
	br_multicast_count(br, NULL, skb, br_multicast_igmp_type(skb),
			   BR_MCAST_DIR_TX);

	//调用NF_BR_LOCAL_IN处钩子函数，最后调用br_netif_receive_skb函数。
	return NF_HOOK(NFPROTO_BRIDGE, NF_BR_LOCAL_IN,
		       dev_net(indev), NULL, skb, indev, NULL,
		       br_netif_receive_skb);
}

再次进入 netif_receive_skb，由于 skb-dev 被设置成了 bridge，而 bridge 设备的 rx_handler 函数是没有被设置的，所以就不会再次进入 bridge 逻辑，而直接进入了主机上层协议栈。

相关函数

br_netif_receive_skb()

可以看到在 br_netif_receive_skb() 函数中调用了 netif_receive_skb() 函数。

1
2
3
4
5
6
7

static int
br_netif_receive_skb(struct net *net, struct sock *sk, struct sk_buff *skb)
{
	br_drop_fake_rtable(skb);
	return netif_receive_skb(skb);
}

4. br_forward()

不是发往本地的数据包，但在 fdb 表中能找到对应的表项，则进行转发 br_forward()，若在 fdb 表中找不到对应表项就进行洪泛 br_blood().

作用：

主要是调用__br_forward() 转发报文

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
//linux/net/bridge/br_forward.c
/**
 * br_forward - forward a packet to a specific port
 * @to: destination port
 * @skb: packet being forwarded
 * @local_rcv: packet will be received locally after forwarding
 * @local_orig: packet is locally originated
 *
 * Should be called with rcu_read_lock.
 */
void br_forward(const struct net_bridge_port *to,
		struct sk_buff *skb, bool local_rcv, bool local_orig)
{
	//should_deliver测试是否应该将该包转发出去
	if (to && should_deliver(to, skb)) {
		//如果local_rcv为1，表明端口为混杂模式，先clone一份数据包再进行转发
		if (local_rcv)
			deliver_clone(to, skb, local_orig);
		else
			__br_forward(to, skb, local_orig);
		return;
	}

	if (!local_rcv)
		kfree_skb(skb);
}

5. __br_forward()

作用:

__br_forward() 函数根据数据包的来源（local_orig）分别进入不同的钩子点，如果数据包是从本地发出的，则进入 NF_BR_LOCAL_OUT，如果不是本地发出的，则进入 NF_BR_FORWARD 钩子，最后都进入 br_forward_finish() 函数。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
//linux/net/bridge/br_forward.c
static void __br_forward(const struct net_bridge_port *to,
			 struct sk_buff *skb, bool local_orig)
{
	struct net_bridge_vlan_group *vg;
	struct net_device *indev;
	struct net *net;
	int br_hook;
	//获取vlan组，这个组中有许多的vlanid，br_handle_vlan函数就是要在这个组中查找自己的vid
	vg = nbp_vlan_group_rcu(to);

	//添加vlan的相关配置
	skb = br_handle_vlan(to->br, to, vg, skb);
	if (!skb)
		return;
	//记录数据包的原始收包网络设备
	indev = skb->dev;

	//将skb的dev修改为出口网络设备
	skb->dev = to->dev;
	/*如果local_orig标志位(判断是否从本地发出的数据包)为false，就进入NF_BR_FORWARD钩子
	若为true，就进入NF_BR_LOCAL_OUT钩子点*/
	if (!local_orig) {
		if (skb_warn_if_lro(skb)) {
			kfree_skb(skb);
			return;
		}
		//不是本地发出的数据包，进入NF_BR_FORWARD
		br_hook = NF_BR_FORWARD;
		skb_forward_csum(skb);
		net = dev_net(indev);
	} else {
		if (unlikely(netpoll_tx_running(to->br->dev))) {
			if (!is_skb_forwardable(skb->dev, skb)) {
				kfree_skb(skb);
			} else {
				skb_push(skb, ETH_HLEN);
				br_netpoll_send_skb(to, skb);
			}
			return;
		}
		//若是本地发出的数据包，进入NF_BR_LOCAL_OUT处理
		br_hook = NF_BR_LOCAL_OUT;
		net = dev_net(skb->dev);
		indev = NULL;
	}

	//进入钩子点，最后执行br_forward_finish函数。
	NF_HOOK(NFPROTO_BRIDGE, br_hook,
		net, NULL, skb, indev, skb->dev,
		br_forward_finish);
}

6. br_forward_finish()

br_forward_finish() 函数比较简单，调用 NF_BR_POST_ROUTING 处的钩子函数，最后进入 br_dev_queue_push_xmit 函数。

1
2
3
4
5
6
7
8
//linux/net/bridge/br_forward.c
int br_forward_finish(struct net *net, struct sock *sk, struct sk_buff *skb)
{
	return NF_HOOK(NFPROTO_BRIDGE, NF_BR_POST_ROUTING,
		       net, sk, skb, NULL, skb->dev,
		       br_dev_queue_push_xmit);

}

7. br_dev_queue_push_xmit

在 br_dev_queue_push_xmit() 中，会先 skb_push(skb,ETH,HLEN); 将 data 指向二层头部，然后调用 dev_queue_xmit() 发送报文。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
//linux/net/bridge/br_forward.c
int br_dev_queue_push_xmit(struct net *net, struct sock *sk, struct sk_buff *skb)
{
	if (!is_skb_forwardable(skb->dev, skb))
		goto drop;

        //注意这句操作
	skb_push(skb, ETH_HLEN);
	br_drop_fake_rtable(skb);

	if (skb->ip_summed == CHECKSUM_PARTIAL &&
	    (skb->protocol == htons(ETH_P_8021Q) ||
	     skb->protocol == htons(ETH_P_8021AD))) {
		int depth;

		if (!__vlan_get_protocol(skb, skb->protocol, &depth))
			goto drop;

		skb_set_network_header(skb, depth);
	}

	dev_queue_xmit(skb);

	return 0;

drop:
	kfree_skb(skb);
	return 0;
}

8. br_flood

br_flood() 也是调用 __br_forward() 函数转发报文。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
//linux/net/bridge/br_forward.c
/* called under rcu_read_lock */
void br_flood(struct net_bridge *br, struct sk_buff *skb,
	      enum br_pkt_type pkt_type, bool local_rcv, bool local_orig)
{
	u8 igmp_type = br_multicast_igmp_type(skb);
	struct net_bridge_port *prev = NULL;
	struct net_bridge_port *p;

	/*遍历网桥设备的port_list，取出所有的网桥端口*/
	list_for_each_entry_rcu(p, &br->port_list, list)
        {
		/* Do not flood unicast traffic to ports that turn it off, nor
		 * other traffic if flood off, except for traffic we originate
		 */
		switch (pkt_type)
                {
		case BR_PKT_UNICAST:
			if (!(p->flags & BR_FLOOD))
				continue;
			break;
		case BR_PKT_MULTICAST:
			if (!(p->flags & BR_MCAST_FLOOD) && skb->dev != br->dev)
				continue;
			break;
		case BR_PKT_BROADCAST:
			if (!(p->flags & BR_BCAST_FLOOD) && skb->dev != br->dev)
				continue;
			break;
		}

		/* Do not flood to ports that enable proxy ARP */
                /*代理arp*/
		if (p->flags & BR_PROXYARP)
			continue;
		if ((p->flags & (BR_PROXYARP_WIFI | BR_NEIGH_SUPPRESS)) &&
		    BR_INPUT_SKB_CB(skb)->proxyarp_replied)
			continue;

		prev = maybe_deliver(prev, p, skb, local_orig);
		if (IS_ERR(prev))
			goto out;
		if (prev == p)
			br_multicast_count(p->br, p, skb, igmp_type,
					   BR_MCAST_DIR_TX);
	}

	if (!prev)
		goto out;

	if (local_rcv)
		deliver_clone(prev, skb, local_orig);
	else
		__br_forward(prev, skb, local_orig);
	return;

out:
	if (!local_rcv)
		kfree_skb(skb);
}

9. br_mulicast_flood()

以后再分析，肚子饿了。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
//linux/net/bridge/br_forward.c
/* called with rcu_read_lock */
void br_multicast_flood(struct net_bridge_mdb_entry *mdst,
			struct sk_buff *skb,
			bool local_rcv, bool local_orig)
{
	struct net_device *dev = BR_INPUT_SKB_CB(skb)->brdev;
	u8 igmp_type = br_multicast_igmp_type(skb);
	struct net_bridge *br = netdev_priv(dev);
	struct net_bridge_port *prev = NULL;
	struct net_bridge_port_group *p;
	struct hlist_node *rp;

	rp = rcu_dereference(hlist_first_rcu(&br->router_list));
	p = mdst ? rcu_dereference(mdst->ports) : NULL;
	while (p || rp) {
		struct net_bridge_port *port, *lport, *rport;

		lport = p ? p->port : NULL;
		rport = rp ? hlist_entry(rp, struct net_bridge_port, rlist) :
			     NULL;

		if ((unsigned long)lport > (unsigned long)rport) {
			port = lport;

			if (port->flags & BR_MULTICAST_TO_UNICAST) {
				maybe_deliver_addr(lport, skb, p->eth_addr,
						   local_orig);
				goto delivered;
			}
		} else {
			port = rport;
		}

		prev = maybe_deliver(prev, port, skb, local_orig);
delivered:
		if (IS_ERR(prev))
			goto out;
		if (prev == port)
			br_multicast_count(port->br, port, skb, igmp_type,
					   BR_MCAST_DIR_TX);

		if ((unsigned long)lport >= (unsigned long)port)
			p = rcu_dereference(p->next);
		if ((unsigned long)rport >= (unsigned long)port)
			rp = rcu_dereference(hlist_next_rcu(rp));
	}

	if (!prev)
		goto out;

	if (local_rcv)
		deliver_clone(prev, skb, local_orig);
	else
		__br_forward(prev, skb, local_orig);
	return;

out:
	if (!local_rcv)
		kfree_skb(skb);
}

参考

ebtables/iptables interaction on a Linux-based bridge @ebtables @2.4.x kernel

Iptables DNAT实现broadcast与unicast之间相互映射 @sxd2001 分析ebtables 的redirect 和 iptables 的redirect

Linux-4.20.8内核桥收包源码解析（七）--本地（br_pass_frame_up）or 转发（br_forward） @lw_yang @Linux-4.20.8

Linux 3.10 kernel bridge转发逻辑 @lvyilong316 @Linux 3.10 kernel

kernel 网桥代码分析 @海枫 @ 2.6.24.4

桥数据包处理函数——br_handle_frame_finish（七） @不留你的名字

Bridge实现 @SuperKing @linux 2.6.18

LInux下桥接模式详解三 @jack.chen @linux 3.10.1

协议栈报文接收之netif_receive_skb函数分析 @one_clouder @Linux4.1.12

0%
